Architecture Overview

This page maps Kilo Code's repository-defined architecture. It introduces the local runtime, editor clients, cloud service boundaries, and hosted execution products before the subsystem pages add implementation detail.

ℹ️Scope

Use these pages for stable system boundaries and contributor-wide contracts. Source code remains the reference for feature-level implementation details. Static source shows code paths and deployable surfaces, not production enablement, traffic, retention, or vendor configuration.

How to read these pages

Choose the path closest to the change you are making:

Contributor path	Suggested order
Local CLI or editor client	Architecture Overview -> CLI Runtime -> VS Code Extension or JetBrains Plugin
Hosted platform or automation	Architecture Overview -> Cloud Platform -> Automation Services
Security review	Architecture Overview -> Cloud Platform -> Cloud Security
Architecture-facing implementation	Relevant architecture page -> Development Patterns
CLI config ownership or key change	CLI Runtime -> CLI Config Schema -> Development Patterns

Repository boundaries

Architecture pages cross two repositories:

Repository	Contents
Kilo‑Org/kilocode	Kilo CLI runtime, local daemon, Kilo Console, VS Code extension, JetBrains plugin, JavaScript SDK, codebase indexing, Kilo Gateway client, telemetry, docs, and shared UI packages
Kilo‑Org/cloud	Web control plane, Kilo Gateway routes, Cloud Agent session runtime, automation, generated-application preview and deployment services, KiloClaw, Gas Town, billing, and supporting Workers

Three architecture layers

Layer	Responsibility	Typical boundaries
Local runtime and clients	Runs local coding sessions and connects editor surfaces to one local agent engine	Kilo CLI runtime, `kilo serve` server, local daemon, Kilo Console, VS Code extension, JetBrains plugin
Kilo Cloud shared services	Handles hosted identity, authorization, model routing, billing, orchestration, and shared product services	Web control plane, Kilo Gateway, Workers, queues, Durable Objects, persistence
Hosted product runtimes and automation	Runs scoped cloud work for coding, app generation, assistants, security analysis, and multi-agent orchestration	Cloud Agent, Automation Services, App Builder, Security Agent, KiloClaw, Gas Town, Wasteland

Local execution and hosted execution are separate boundaries. Editor clients use a local kilo serve server. Hosted automation can launch Cloud Agent execution sessions when cloud coding work is required.

Terms used throughout

Term	Meaning
Kilo Code	Umbrella product across local clients, Kilo CLI runtime, and Kilo Cloud services
Kilo CLI runtime	Local agent engine in `packages/opencode/`; owns tools, sessions, config, persistence, and provider routing
`kilo serve` server	Local HTTP and SSE process used by editor clients and Kilo Console; selected browser-oriented paths also use WebSocket
Local daemon	Detached reusable `kilo serve` server managed by `kilo daemon` commands
Directory context	Normalized local filesystem directory used to select local runtime state
Local runtime instance	Directory-keyed runtime context inside one Kilo CLI process
Local routing workspace	Optional routing context that can resolve to a local directory or remote target
Worktree directory	Alternate git worktree path used as a directory context for isolated concurrent work
Web control plane	Hosted Kilo Cloud application layer for identity, organization authorization, billing, product configuration, and API orchestration
Kilo Gateway	First-party hosted model-routing boundary
Cloud Agent	Hosted coding-session capability. A Cloud Agent execution session is one hosted run; current session runtime implementation lives in `services/cloud-agent-next/`.

Core execution spine

The three layers appear in two primary execution shapes: local client requests and hosted cloud work.

flowchart LR
  subgraph clients ["Local clients"]
    tui["Kilo CLI TUI"]
    run["kilo run"]
    console["Kilo Console"]
    editors["VS Code and JetBrains"]
  end

  subgraph local ["Local Kilo CLI boundary"]
    daemon["Local daemon manager"]
    server["kilo serve server"]
    runtime["Kilo CLI runtime"]
    router["Provider router"]
  end

  subgraph cloud ["Kilo Cloud shared services"]
    web["Web control plane"]
    workers["Automation Workers, queues, and Durable Objects"]
    gateway["Kilo Gateway"]
    agent["Cloud Agent"]
  end

  trigger["Hosted product or automation trigger"]
  repos["Repositories"]
  models["Model providers and external gateways"]

  tui -->|"daemon attach when available"| server
  tui -->|"worker-backed fallback"| runtime
  run -->|"attach when available"| server
  run -->|"embedded fallback"| runtime
  console -->|"starts or reuses"| daemon
  daemon -->|"owns detached child"| server
  editors -->|"start editor-owned child over HTTP + SSE"| server
  server --> runtime --> router
  router -->|"direct provider"| models
  router --> gateway --> models

  trigger --> web
  trigger --> workers
  web --> workers --> agent
  web --> agent
  agent --> repos
  agent --> models

Two execution paths

Path	Starts from	Runs in	What to remember
Local coding	Kilo CLI, Kilo Console, VS Code, or JetBrains	Kilo CLI runtime on developer machine	Editor clients talk to local `kilo serve` server. Local runtime owns coding session and sends model requests directly or through Kilo Gateway.
Hosted work	Webhook, source-control event, command, schedule, or hosted product	Kilo Cloud services; Cloud Agent when coding is required	Cloud services coordinate work. Only flows that need repository changes launch Cloud Agent execution session.

This distinction is central: using editor does not move coding session into Cloud Agent. Cloud services also route model requests, deliver chat events, dispatch notifications, serve generated applications, and coordinate adjacent hosted boundaries without launching Cloud Agent.

Adjacent hosted boundaries

The core execution spine is not the full cloud product catalog. These service families and hosted runtimes attach to it for specific product flows:

flowchart LR
  web["Web control plane"]
  workers["Automation Services"]
  agent["Cloud Agent"]
  builder["App Builder"]
  preview["Generated-application preview"]
  deploy["Generated-application deployment"]
  security["Security Agent"]
  chat["Kilo Chat, events, and notifications"]
  claw["KiloClaw"]
  town["Gas Town"]
  wasteland["Wasteland"]

  web --> workers --> agent
  web --> builder --> agent
  builder --> preview
  builder --> deploy
  web --> security
  security -->|"optional deep analysis"| agent
  web --> claw
  chat --> claw
  web --> town --> wasteland

Boundary	Role	Topology or workflow	Security review
Automation Services	Turns commands, source-control events, labels, webhooks, and schedules into scoped work	Automation Services	Trust boundaries
App Builder	Coordinates generated-application coding, preview, build, and deployment boundaries	Cloud Platform	Preview and deployment
Security Agent	Syncs findings and analyzes risk; selected deep analysis can launch Cloud Agent	Cloud Platform	Sync and cleanup

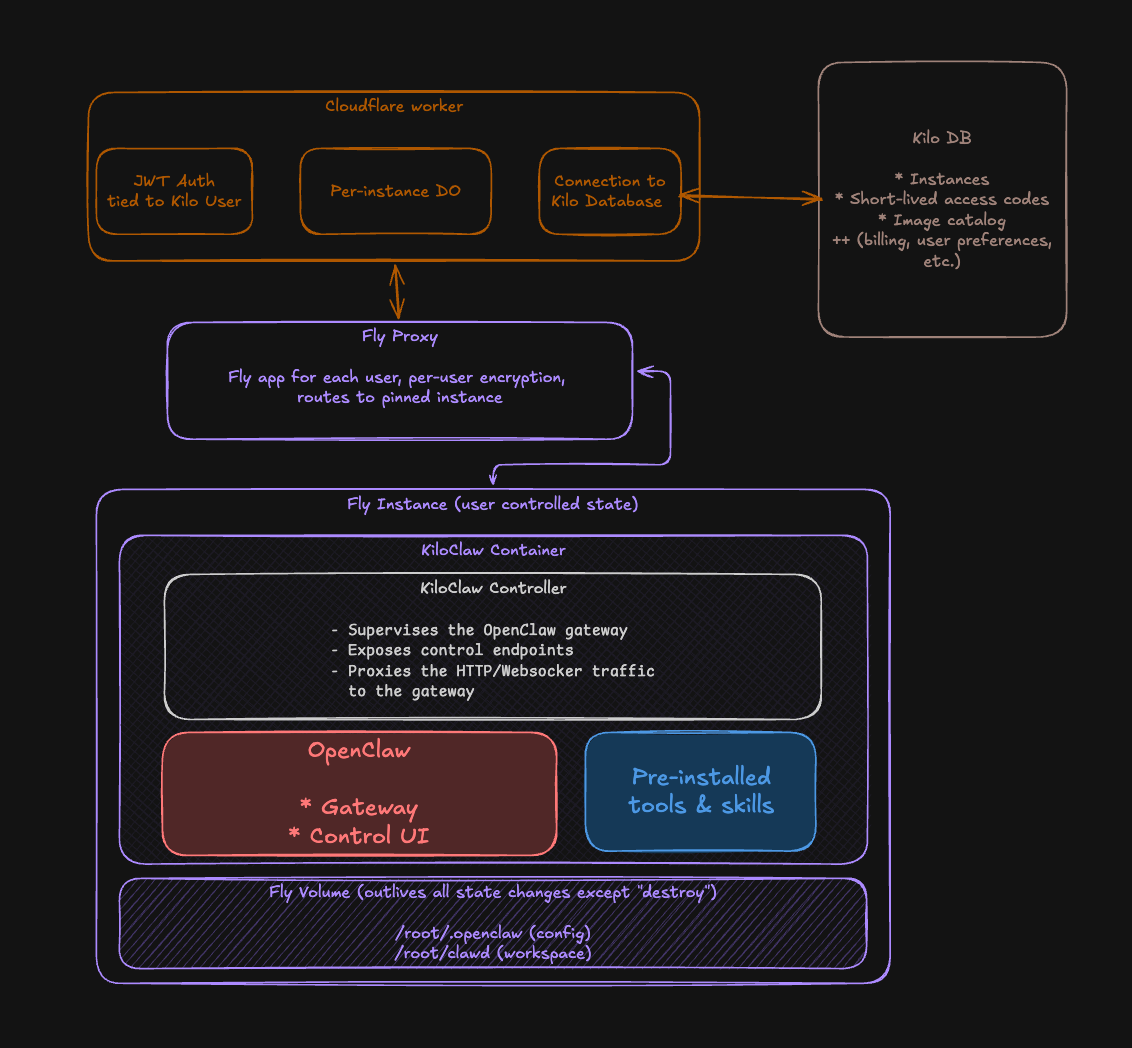

KiloClaw	Coordinates owner-scoped hosted assistant runtimes	Cloud Platform	KiloClaw ingress
Gas Town and Wasteland	Coordinate multi-agent repository work and collaborative commons paths	Cloud Platform	Trust boundaries

Local entry points and clients

These local surfaces live in Kilo-Org/kilocode. Package paths below are relative to that repository root.

Surface	Package in `Kilo-Org/kilocode`	Runtime model
Kilo CLI TUI	`packages/opencode/`	Interactive local client with daemon attach and worker-backed fallback paths
`kilo run`	`packages/opencode/`	Headless prompt execution through explicit attach, daemon attach, or embedded fallback
`kilo serve`	`packages/opencode/`	Local HTTP + SSE server for local clients
Kilo Console	`packages/kilo-console/` `packages/opencode/`	Browser UI served at `/console` by a started or reused local daemon
VS Code extension	`packages/kilo-vscode/`	Extension host starts one shared editor-owned `kilo serve` server and routes webviews through HTTP + global SSE; SDK directory selects local runtime instance
JetBrains plugin	`packages/kilo-jetbrains/`	Split-mode Swing plugin; backend module starts one editor-owned `kilo serve` server and caches workspace clients by directory

Cloud service families

Hosted service families live in Kilo-Org/cloud. Paths below are relative to that repository root unless another repository is named.

Boundary	Primary source paths	Role
Kilo Cloud	`apps/web/` `services/`	Hosted platform repository for identity, billing, routing, product configuration, automation, and scoped execution services
Web control plane	`apps/web/`	Hosted application layer for authorization, configuration, and API orchestration
Kilo Gateway	`apps/web/src/app/api/gateway/` `apps/web/src/lib/ai-gateway/` Local integration: `Kilo-Org/kilocode/packages/kilo-gateway/`	First-party model-routing boundary and local client integration
Cloud Agent	`services/cloud-agent-next/`	Hosted coding-session capability with policy-selected sandbox allocation
Automation Services	`services/code-review-infra/` `services/auto-triage-infra/` `services/auto-fix-infra/` `services/security-auto-analysis/` `services/security-sync/` `services/webhook-agent-ingest/`	Trigger-driven review, triage, fix, security, and configured webhook flows
Adjacent hosted boundaries	`services/app-builder/` `services/kiloclaw/` `services/gastown/` `services/wasteland/` Supporting services	App Builder, KiloClaw, Gas Town, Wasteland, chat, notifications, and supporting services

Supporting packages

These supporting packages also live in Kilo-Org/kilocode. Package paths below are relative to that repository root.

Package in `Kilo-Org/kilocode`	Role
`packages/kilo-indexing/`	Per-directory asynchronous codebase indexing engine behind Kilo CLI bridge
`packages/sdk/js/`	Generated JavaScript client and handwritten wrapper for local server APIs
`packages/kilo-gateway/`	Local Kilo Gateway client integration used by Kilo CLI runtime
`packages/kilo-console/`	Browser UI served by local daemon at `/console`

Architecture pages

Page	What it covers
CLI Runtime	Local execution modes, daemon, server authentication, routing, persistence, snapshots, SDK, config, SSE, Kilo Console, and indexing
VS Code Extension	Shared local `kilo serve` ownership, webview bridge, Agent Manager, PTYs, recovery, bundled resources, and build outputs
JetBrains Plugin	Split-mode modules, RPC, bundled local `kilo serve` lifecycle, Kotlin SDK, recovery, and remote-development constraints
Cloud Platform	Hosted service inventory, Cloud Agent topology, shared cloud boundaries, and adjacent hosted runtimes
Automation Services	Trigger-driven Workers, queues, callbacks, ownership, and scoped execution paths
Cloud Security	Cloud trust boundaries, data flows, persistence, isolation, controls, and third-party categories

Development pages

After system-boundary pages, continue with Development Patterns for implementation rules. Use CLI Config Schema when changing config keys or editor-facing schema publication.

Page	What it covers
Development Patterns	Code-ownership decisions, shared-file seams, SDK generation, validation guards, and fork maintenance
CLI Config Schema	Separate runtime-loading and editor-validation paths for cross-repository config contract
